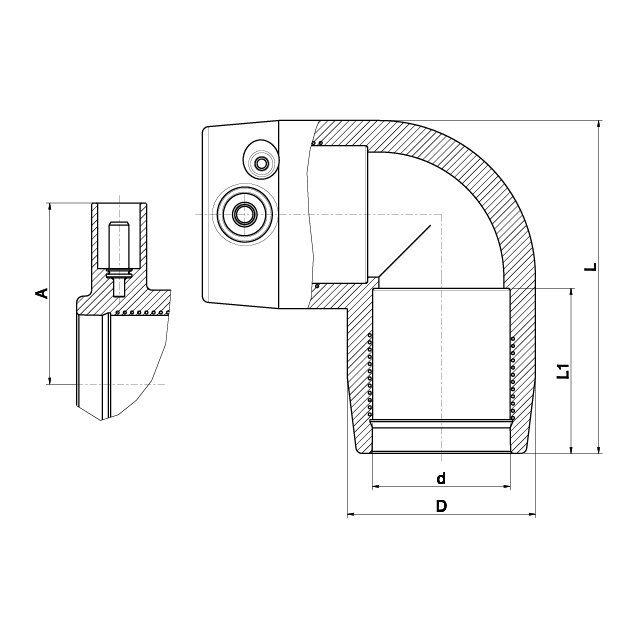

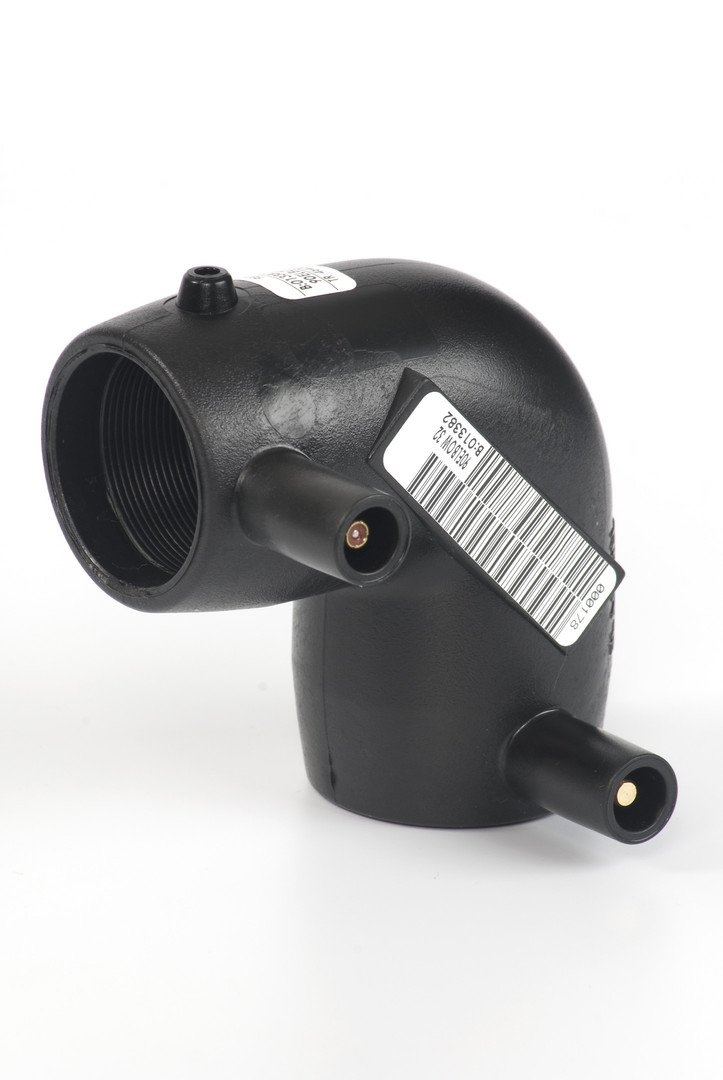

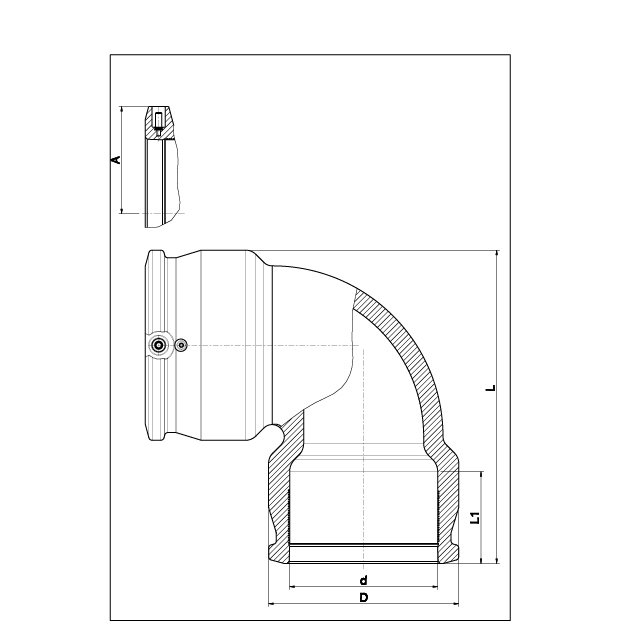

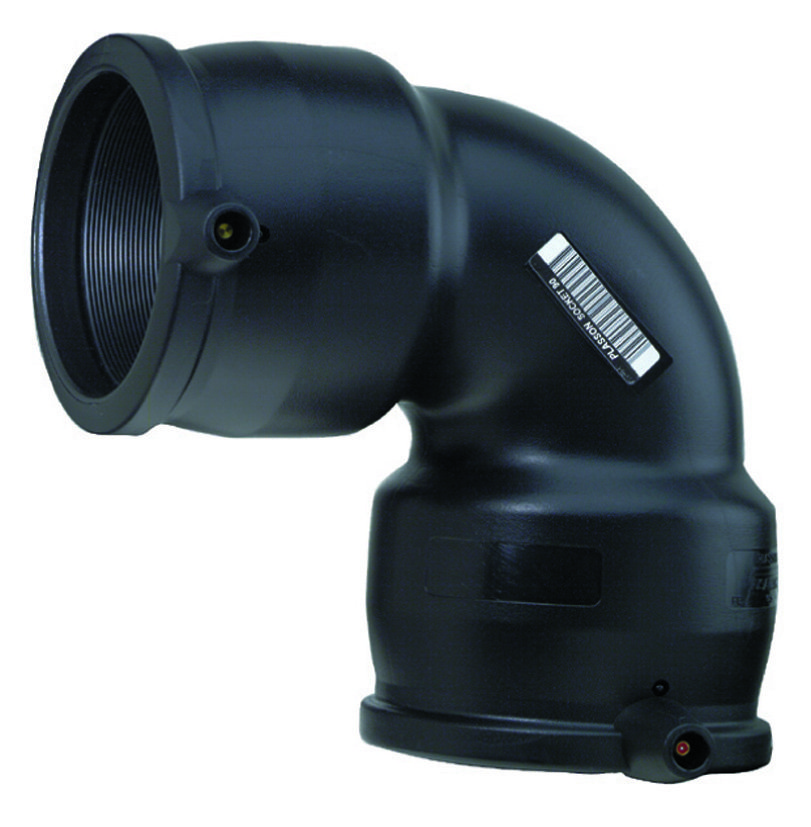

Winkel 90°
Gas PN 10, Wasser PN 16
| Artikelnummer | d | L | L1 | D | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|
| 09050-020.00P | 20 | 66 | 35 | 36 | 320 | 64 |
| 09050-025.00P | 25 | 66 | 35 | 36 | 320 | 52 |
| 09050-032.00P | 32 | 79 | 39 | 44 | 192 | 90 |
| 09050-040.00P | 40 | 93 | 44 | 56 | 120 | 145 |
| 09050-050.00P | 50 | 109 | 49 | 68 | 72 | 221 |
| 09050-063.00P | 63 | 132 | 58 | 82 | 40 | 333 |
| 09050-075.00P | 75 | 158 | 70 | 97 | 33 | 530 |
| 09050-090.00P | 90 | 210 | 78 | 112 | 16 | 866 |
| 09050-110.00P | 110 | 243 | 81 | 143 | 9 | 1.519 |
| 09050-125.00P | 125 | 272 | 85 | 163 | 6 | 2.360 |
| 09050-140.00P | 140 | 315 | 92 | 183 | 4 | 2.974 |
| 09050-160.00P | 160 | 320 | 86 | 199 | 3 | 3.910 |
| 09050-180.00P | 180 | 413 | 105 | 244 | 2 | 7.760 |
| 09050-200.00P | 200 | 448 | 112 | 261 | 1 | 7.150 |
| 09050-225.00P | 225 | 497 | 120 | 294 | 1 | 9.900 |
| 09050-250.00P | 250 | 548 | 128 | 326 | 1 | 13.500 |
