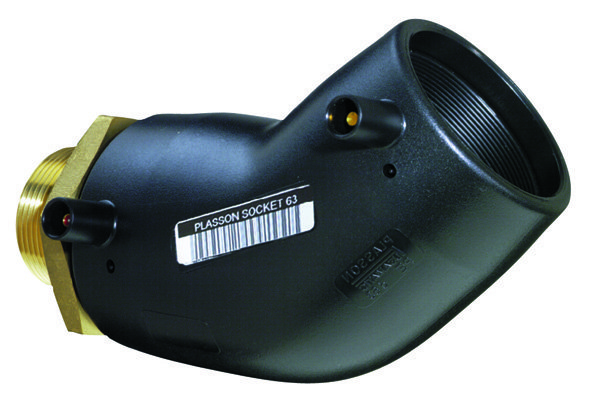

Übergangswinkel 45°, Außengewinde Messing
Wasser PN 16

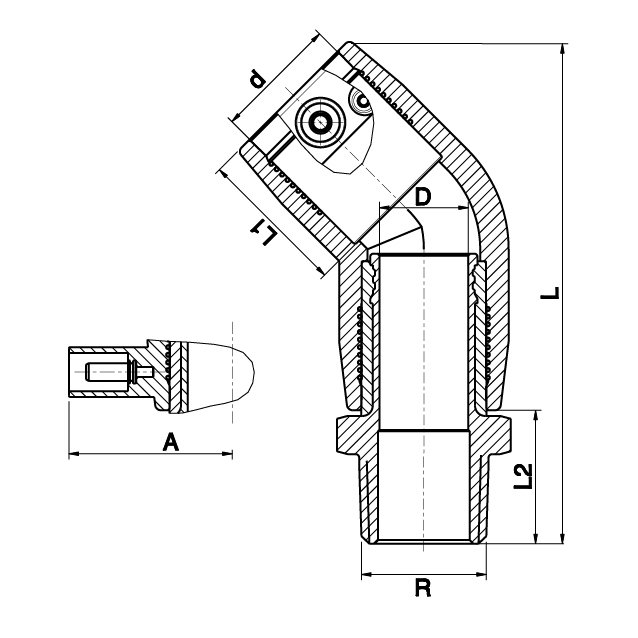

| Artikelnummer | d x R | L | L1 | L2 | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|
| 09260-032.02P | 32 x 1/2" | 124 | 70 | 29 | 96 | 263 |
| 09260-032.03P | 32 x 3/4" | 124 | 70 | 29 | 96 | 266 |
| 09260-032.04P | 32 x 1" | 129 | 76 | 34 | 72 | 270 |
| 09260-032.05P | 32 x 1.1/4" | 131 | 79 | 36 | 48 | 416 |
| 09260-032.06P | 32 x 1.1/2" | 131 | 79 | 36 | 48 | 427 |
| 09260-040.04P | 40 x 1" | 142 | 81 | 34 | 60 | 450 |
| 09260-040.05P | 40 x 1.1/4" | 144 | 83 | 36 | 60 | 500 |
| 09260-040.06P | 40 x 1.1/2" | 144 | 83 | 36 | 48 | 525 |
| 09260-050.04P | 50 x 1" | 158 | 86 | 34 | 48 | 570 |
| 09260-050.05P | 50 x 1.1/4" | 160 | 88 | 36 | 48 | 620 |
| 09260-050.06P | 50 x 1.1/2" | 160 | 88 | 36 | 48 | 605 |
| 09260-050.08P | 50 x 2" | 165 | 93 | 41 | 30 | 790 |
| 09260-063.05P | 63 x 1.1/4" | 185 | 97 | 36 | 24 | 985 |
| 09260-063.06P | 63 x 1.1/2" | 185 | 97 | 36 | 24 | 920 |
| 09260-063.08P | 63 x 2" | 190 | 102 | 41 | 24 | 1.005 |
| 09260-075.08P | 75 x 2" | 206 | 106 | 41 | 16 | 1.450 |
| 09260-075.10P | 75 x 2.1/2" | 211 | 111 | 46 | 16 | 1.650 |
