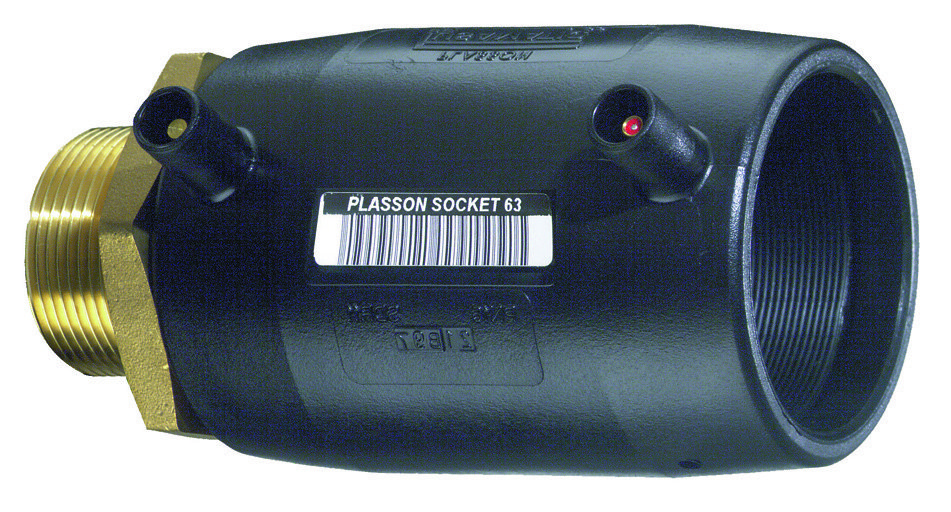

Übergangsmuffe, Außengewinde Messing
Wasser PN 16

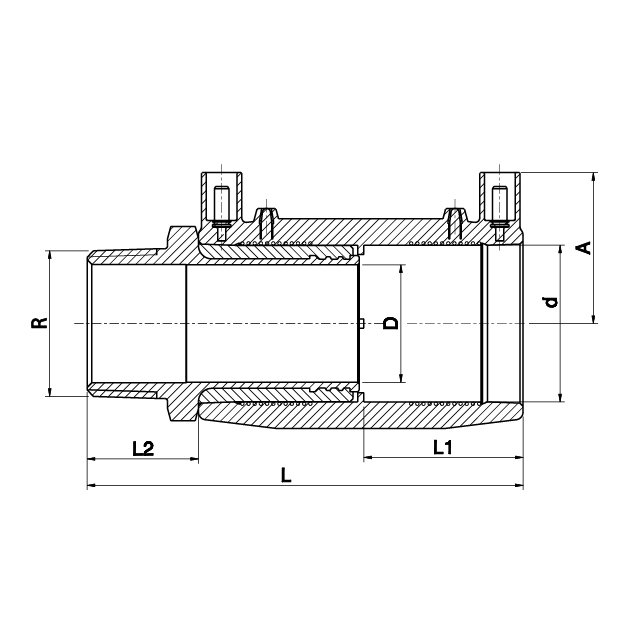

| Artikelnummer | d x R | L | L1 | L2 | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|
| 09210-020.02P | 20 x 1/2" | 100 | 64 | 29 | 200 | 130 |
| 09210-025.03P | 25 x 3/4" | 98 | 61 | 29 | 150 | 150 |
| 09210-032.02P | 32 x 1/2" | 109 | 70 | 29 | 120 | 241 |
| 09210-032.03P | 32 x 3/4" | 109 | 70 | 29 | 120 | 243 |
| 09210-032.04P | 32 x 1" | 114 | 76 | 34 | 100 | 245 |
| 09210-032.05P | 32 x 1.1/4" | 116 | 79 | 36 | 60 | 393 |
| 09210-032.06P | 32 x 1.1/2" | 116 | 79 | 36 | 60 | 404 |
| 09210-040.04P | 40 x 1" | 124 | 81 | 34 | 72 | 409 |
| 09210-040.05P | 40 x 1.1/4" | 126 | 83 | 36 | 54 | 455 |
| 09210-040.06P | 40 x 1.1/2" | 126 | 83 | 36 | 54 | 484 |
| 09210-040.08P | 40 x 2" | 131 | 88 | 41 | 36 | 655 |
| 09210-050.04P | 50 x 1" | 134 | 86 | 34 | 48 | 510 |
| 09210-050.05P | 50 x 1.1/4" | 136 | 88 | 36 | 48 | 560 |
| 09210-050.06P | 50 x 1.1/2" | 136 | 88 | 36 | 48 | 545 |
| 09210-050.08P | 50 x 2" | 141 | 93 | 41 | 30 | 730 |
| 09210-063.05P | 63 x 1.1/4" | 154 | 97 | 36 | 30 | 889 |
| 09210-063.06P | 63 x 1.1/2" | 154 | 97 | 36 | 30 | 825 |
| 09210-063.08P | 63 x 2" | 159 | 102 | 41 | 30 | 910 |
| 09210-075.08P | 75 x 2" | 167 | 106 | 41 | 16 | 1.300 |
| 09210-075.10P | 75 x 2.1/2" | 172 | 111 | 46 | 16 | 1.500 |
