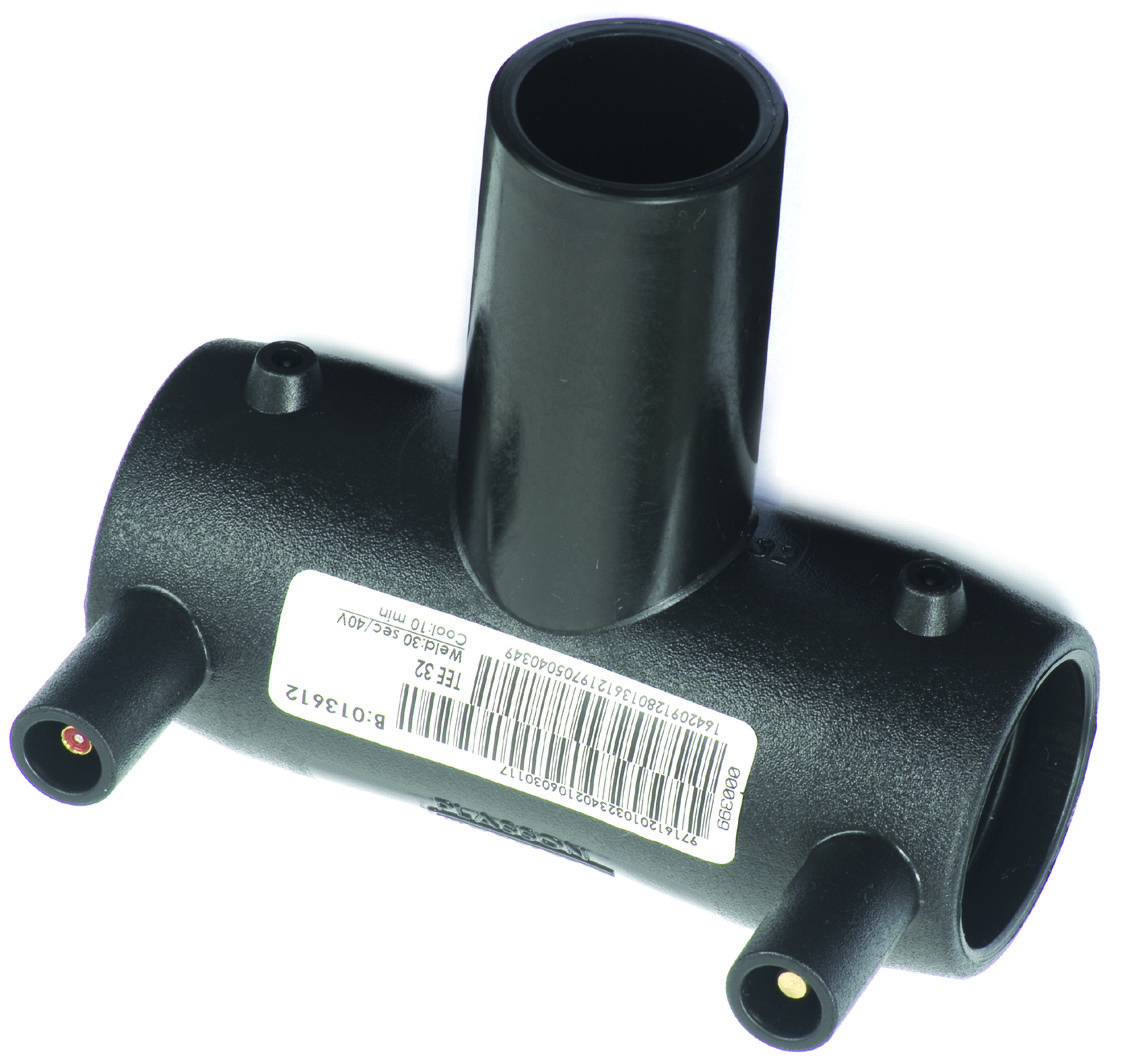

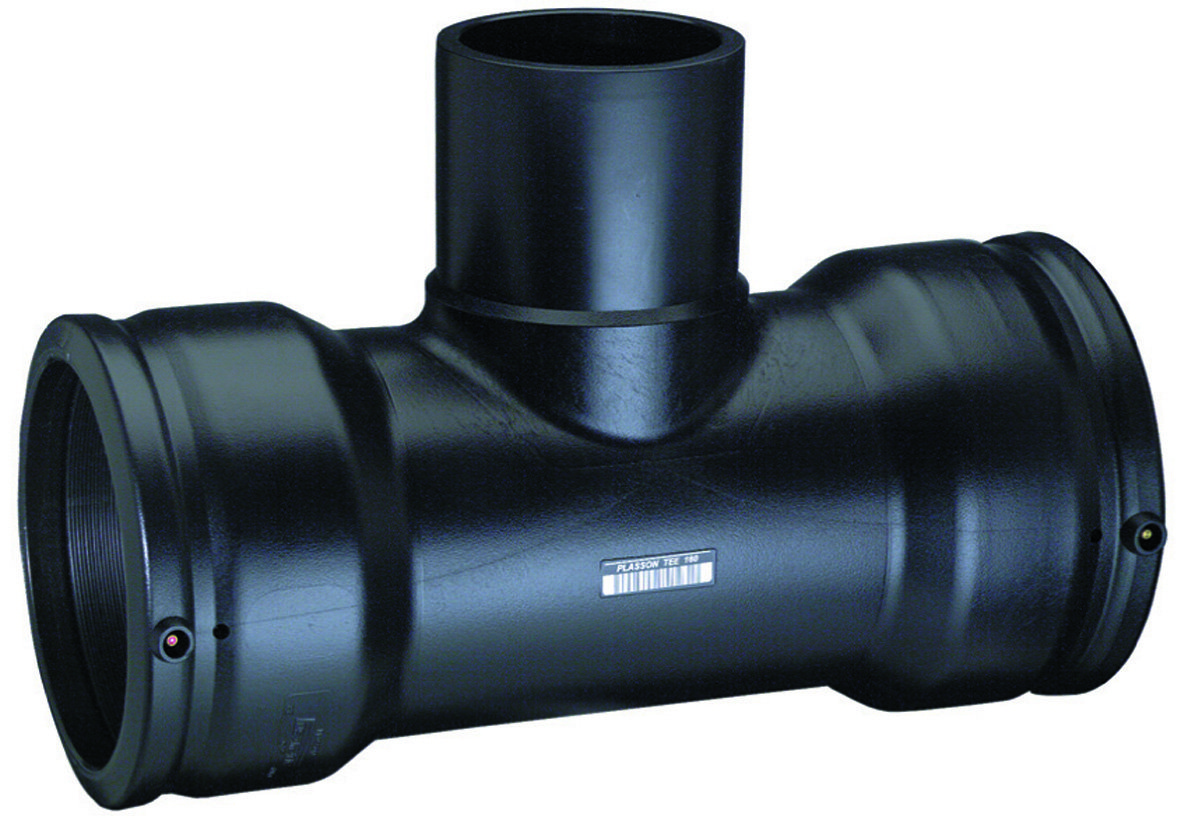

T-Stück 90° egal
Gas PN 10, Wasser PN 16

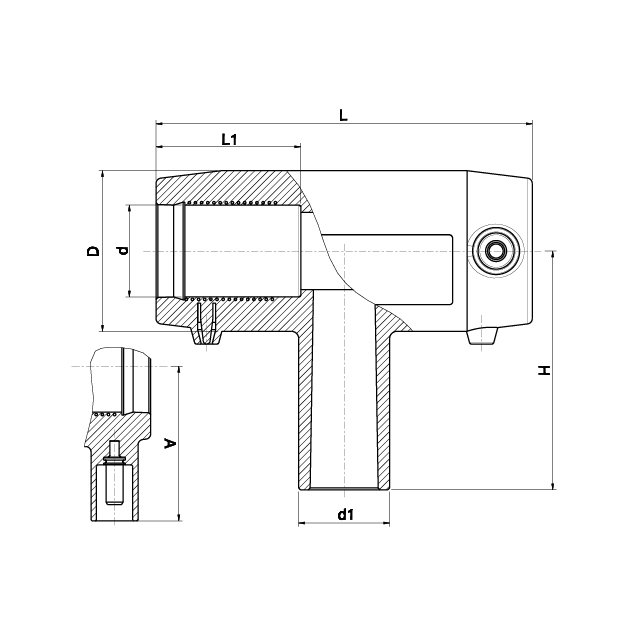

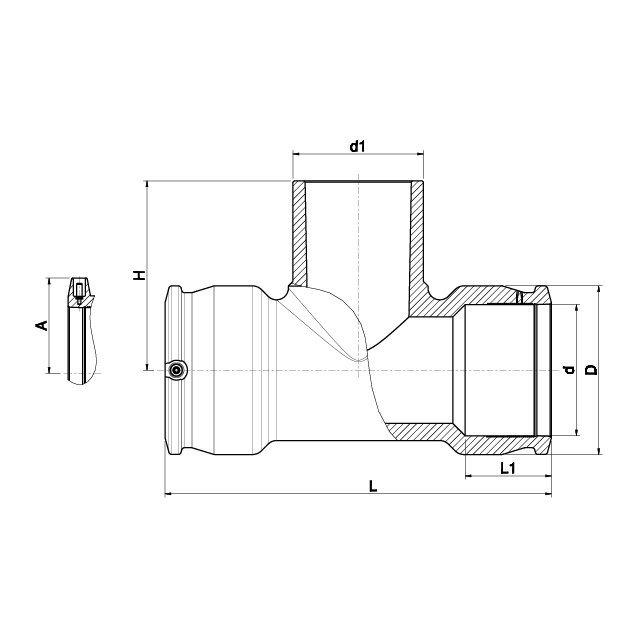

| Artikelnummer | d x d1 x d | L | L1 | D | H | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|
| 09040-020.00P | 20 x 20 x 20 | 96 | 37 | 32 | 60 | 200 | 63 |
| 09040-025.00P | 25 x 25 x 25 | 104 | 40 | 44 | 66 | 168 | 113 |
| 09040-032.00P | 32 x 32 x 32 | 104 | 39 | 44 | 74 | 144 | 99 |
| 09040-040.00P | 40 x 40 x 40 | 121 | 44 | 56 | 90 | 96 | 176 |
| 09040-050.00P | 50 x 50 x 50 | 139 | 49 | 68 | 102 | 56 | 270 |
| 09040-063.00P | 63 x 63 x 63 | 166 | 58 | 82 | 119 | 32 | 434 |
| 09040-075.00P | 75 x 75 x 75 | 195 | 63 | 97 | 129 | 26 | 630 |
| 09040-090.00P | 90 x 90 x 90 | 293 | 71 | 112 | 137 | 15 | 1.090 |
| 09040-110.00P | 110 x 110 x 110 | 328 | 72 | 143 | 160 | 8 | 1.965 |
| 09040-125.00P | 125 x 125 x 125 | 381 | 85 | 163 | 177 | 4 | 2.950 |
| 09040-160.00P | 160 x 160 x 160 | 443 | 86 | 212 | 206 | 3 | 4.700 |
| 09040-180.00P | 180 x 180 x 180 | 420 | 105 | 244 | 250 | 2 | 7.240 |
| 09040-200.00P | 200 x 200 x 200 | 447 | 112 | 261 | 265 | 1 | 8.540 |
| 09040-225.00P | 225 x 225 x 225 | 492 | 120 | 294 | 290 | 1 | 11.970 |
| 09040-250.00P | 250 x 250 x 250 | 538 | 129 | 326 | 315 | 1 | 15.900 |
