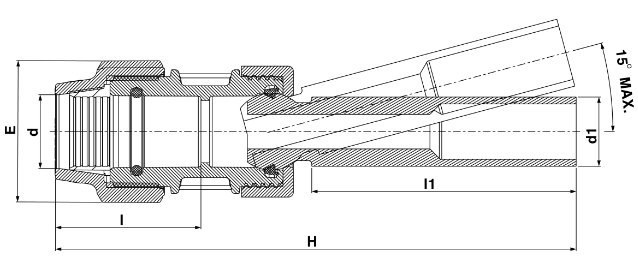

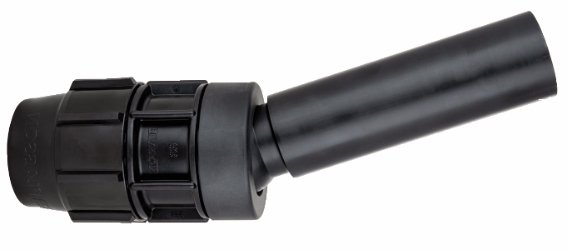

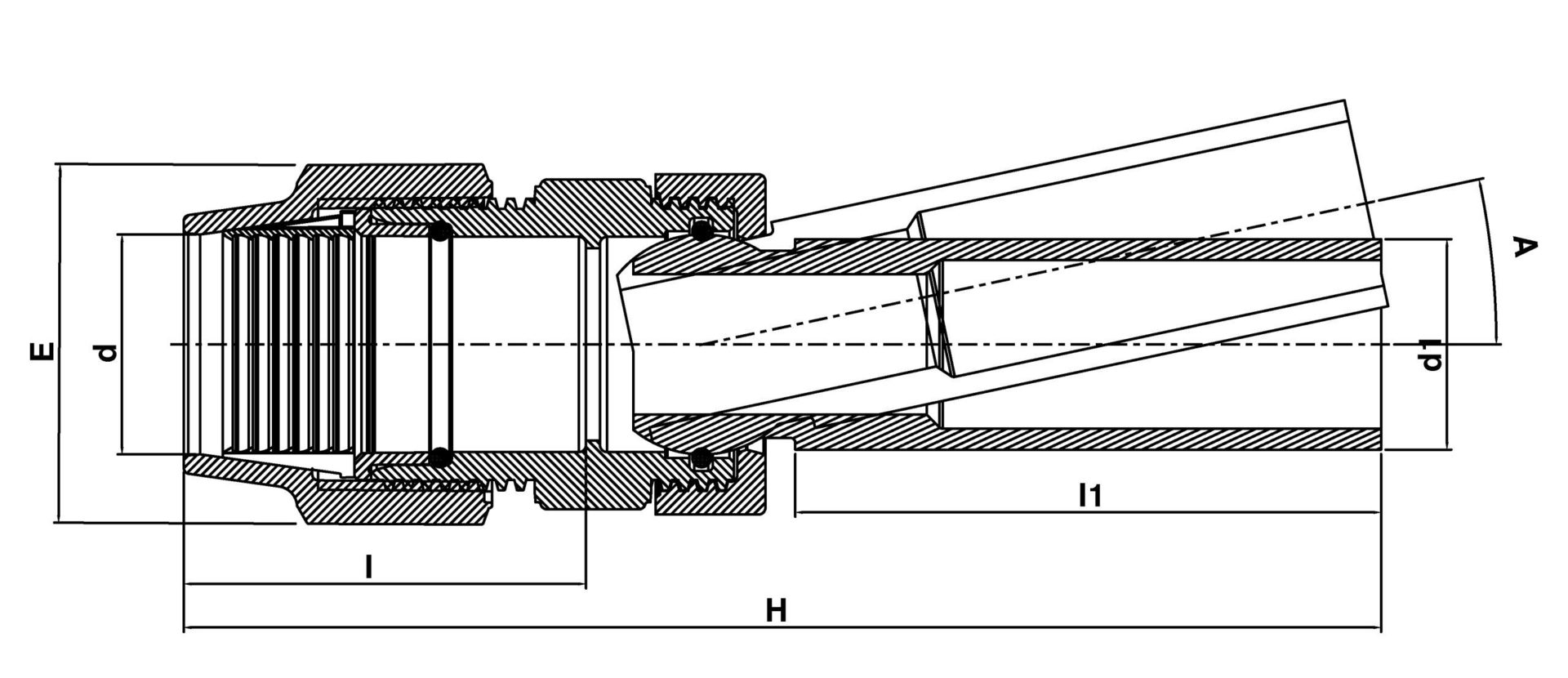

Flexwinkel (0°-15°)
d 32-63, 90-125 PN 16
| Artikelnummer | d x d1 | A | E | H | I | I1 | Stk/Pck | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|---|---|
| 7470-032.00 | 32 x 32 flex | 15° | 64 | 257 | 71 | 140 | 5 | 100 | 240 |
| 7470-040.00 | 40 x 40 flex | 15° | 82 | 301 | 87 | 153 | - | 50 | 430 |
| 7470-050.00 | 50 x 50 flex | 15° | 96 | 340 | 98 | 173 | - | 35 | 630 |
| 7470-063.00 | 63 x 63 flex | 15° | 113 | 384 | 113 | 195 | - | 20 | 1.110 |
| 7470-090.00 | 90 x 90 flex | 15° | 154 | 502 | 165 | 246 | - | 8 | 2.370 |
| 7470-110.00 | 110 x 110 flex | 15° | 181 | 571 | 194 | 270 | - | 3 | 3.820 |
| 7470-125.00 | 125 x 125 flex | 15° | 212 | 607 | 225 | 245 | - | 1 | 6.140 |
