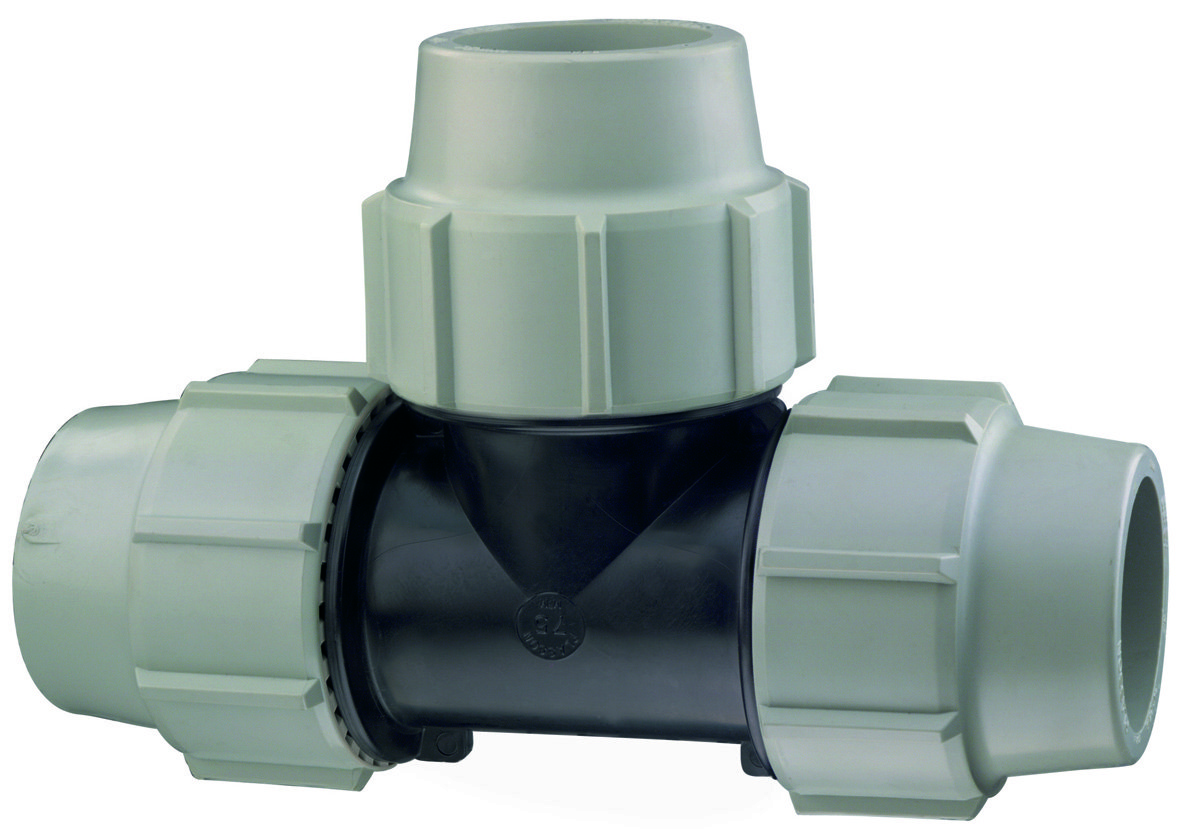

T-Stück 90°
d 20-110 mm PN 16

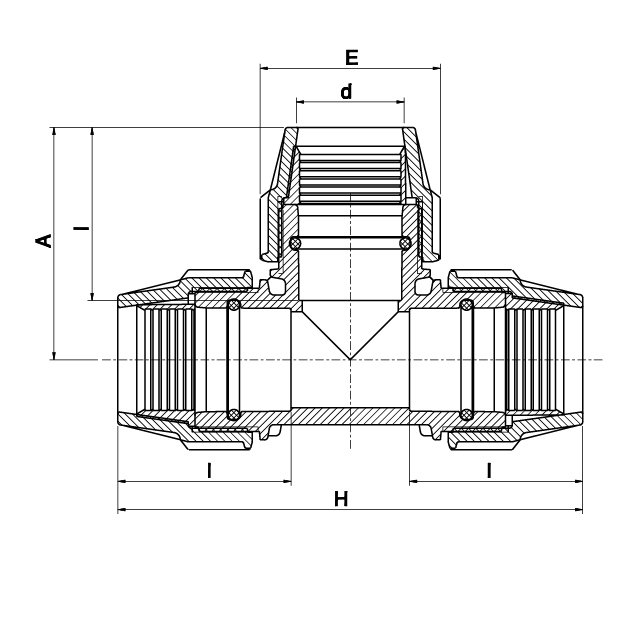

| Artikelnummer | d x d x d | A | E | H | I | Stk/Pck | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|---|
| 7040-020.00 | 20 x 20 x 20 | 73 | 48 | 145 | 56 | 10 | 120 | 151 |
| 7040-025.00 | 25 x 25 x 25 | 78 | 54 | 156 | 58 | 5 | 100 | 191 |
| 7040-032.00 | 32 x 32 x 32 | 93 | 64 | 185 | 67 | 5 | 60 | 301 |
| 7040-040.00 | 40 x 40 x 40 | 111 | 82 | 221 | 86 | - | 40 | 517 |
| 7040-050.00 | 50 x 50 x 50 | 126 | 96 | 252 | 95 | - | 25 | 748 |
| 7040-063.00 | 63 x 63 x 63 | 146 | 113 | 294 | 110 | - | 16 | 1.145 |
| 7040-075.00 | 75 x 75 x 75 | 182 | 132 | 364 | 137 | - | 8 | 1.947 |
| 7040-090.00 | 90 x 90 x 90 | 219 | 152 | 438 | 164 | - | 5 | 3.165 |
| 7040-110.00 | 110 x 110 x 110 | 294 | 181 | 583 | 196 | - | 2 | 5.868 |
