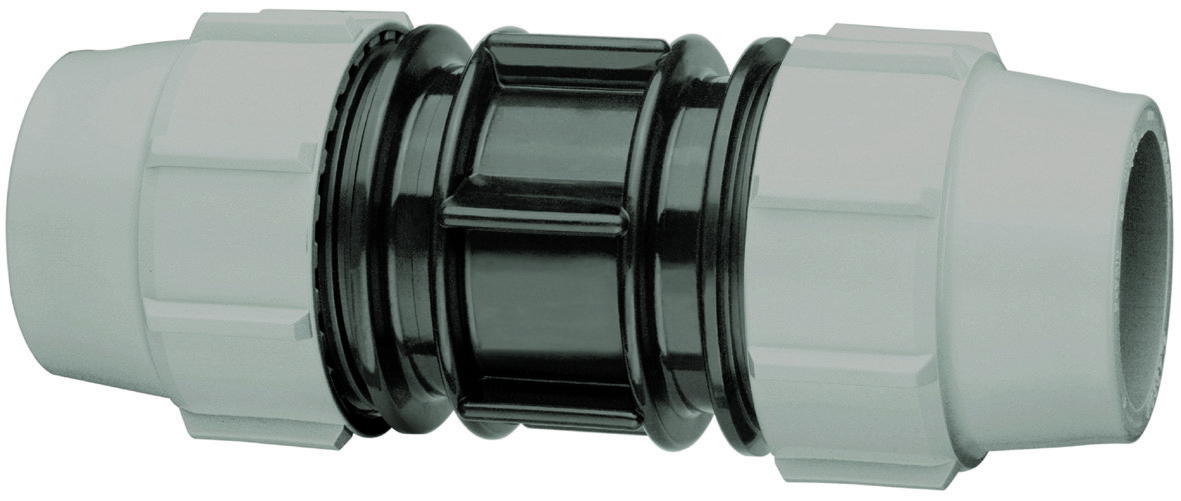

Reparatur-Kupplung
d 20-110 mm PN 16, d 125 mm PN 12,5

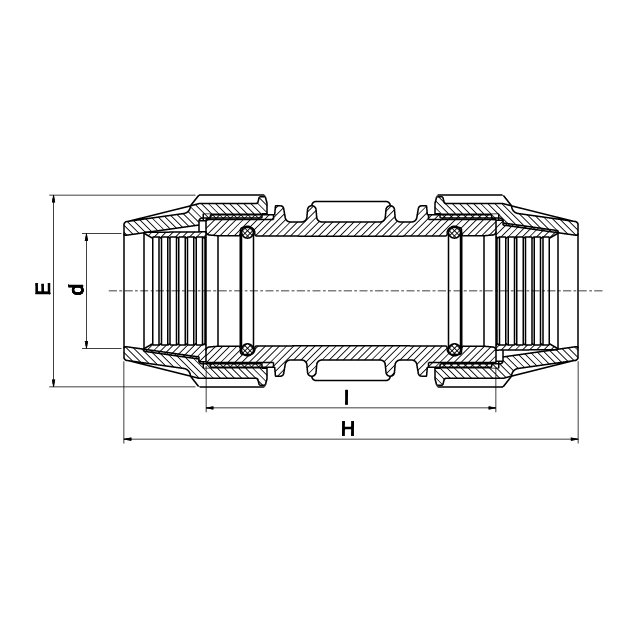

| Artikelnummer | d x d | E | H | I | Stk/Pck | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|
| 7610-020.00 | 20 x 20 | 48 | 122 | 78 | 10 | 240 | 141 |
| 7610-025.00 | 25 x 25 | 54 | 136 | 90 | 10 | 150 | 119 |
| 7610-032.00 | 32 x 32 | 64 | 174 | 120 | 5 | 80 | 202 |
| 7610-040.00 | 40 x 40 | 82 | 215 | 148 | - | 55 | 360 |
| 7610-050.00 | 50 x 50 | 96 | 244 | 158 | - | 30 | 536 |
| 7610-063.00 | 63 x 63 | 113 | 270 | 170 | - | 24 | 836 |
| 7610-075.00 | 75 x 75 | 132 | 289 | 101 | - | 16 | 1.205 |
| 7610-090.00 | 90 x 90 | 152 | 334 | 57 | - | 8 | 1.893 |
| 7610-110.00 | 110 x 110 | 181 | 398 | 83 | - | 5 | 3.258 |
| 7610-125.00 | 125 x 125 | 212 | 460 | 265 | - | 2 | 5.320 |
