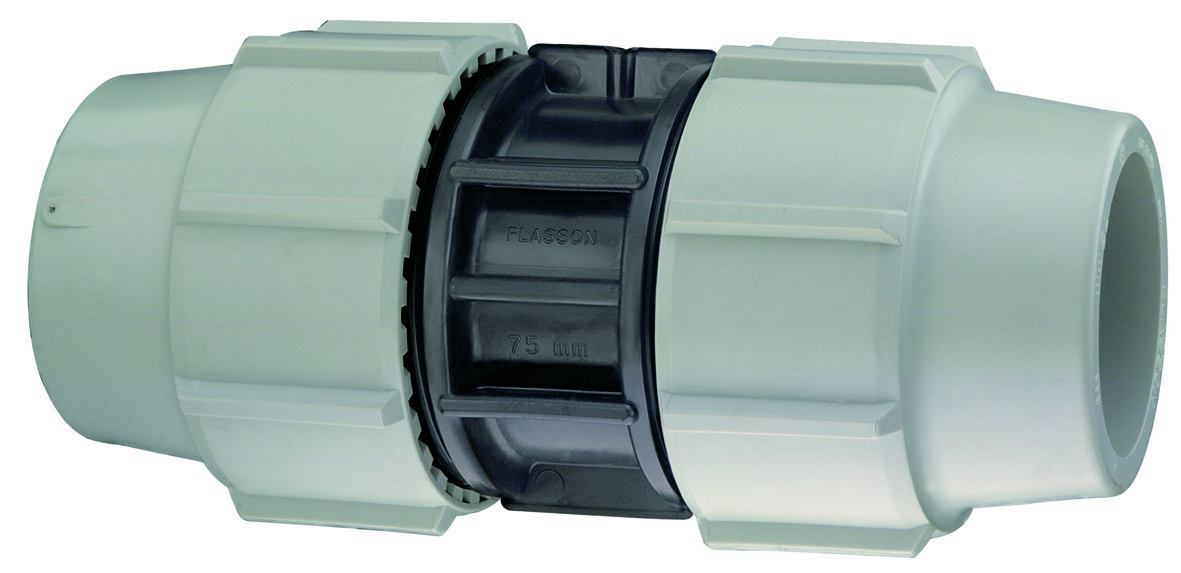

Kupplung
d 16-110 mm PN 16, d 125 mm PN 12,5

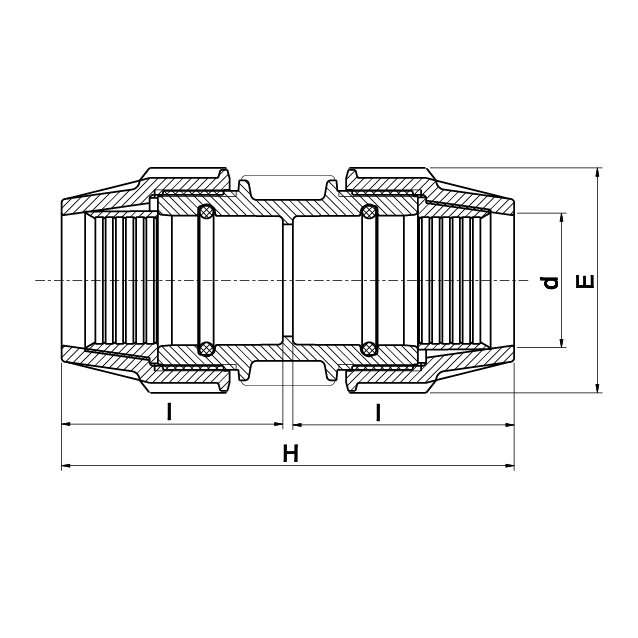

| Artikelnummer | d x d | E | H | I | Stk/Pck | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|
| 7010-016.00 | 16 x 16 | 39 | 105 | 50 | 10 | 400 | 52 |
| 7010-020.00 | 20 x 20 | 48 | 122 | 59 | 10 | 200 | 93 |
| 7010-025.00 | 25 x 25 | 54 | 126 | 61 | 10 | 180 | 116 |
| 7010-032.00 | 32 x 32 | 64 | 145 | 71 | 5 | 100 | 181 |
| 7010-040.00 | 40 x 40 | 82 | 177 | 87 | - | 75 | 310 |
| 7010-050.00 | 50 x 50 | 96 | 201 | 98 | - | 45 | 457 |
| 7010-063.00 | 63 x 63 | 113 | 230 | 113 | - | 30 | 741 |
| 7010-075.00 | 75 x 75 | 132 | 289 | 143 | - | 16 | 1.246 |
| 7010-090.00 | 90 x 90 | 152 | 334 | 164 | - | 8 | 1.893 |
| 7010-110.00 | 110 x 110 | 181 | 398 | 196 | - | 5 | 3.321 |
| 7010-125.00 | 125 x 125 | 212 | 460 | 225 | - | 3 | 5.347 |
