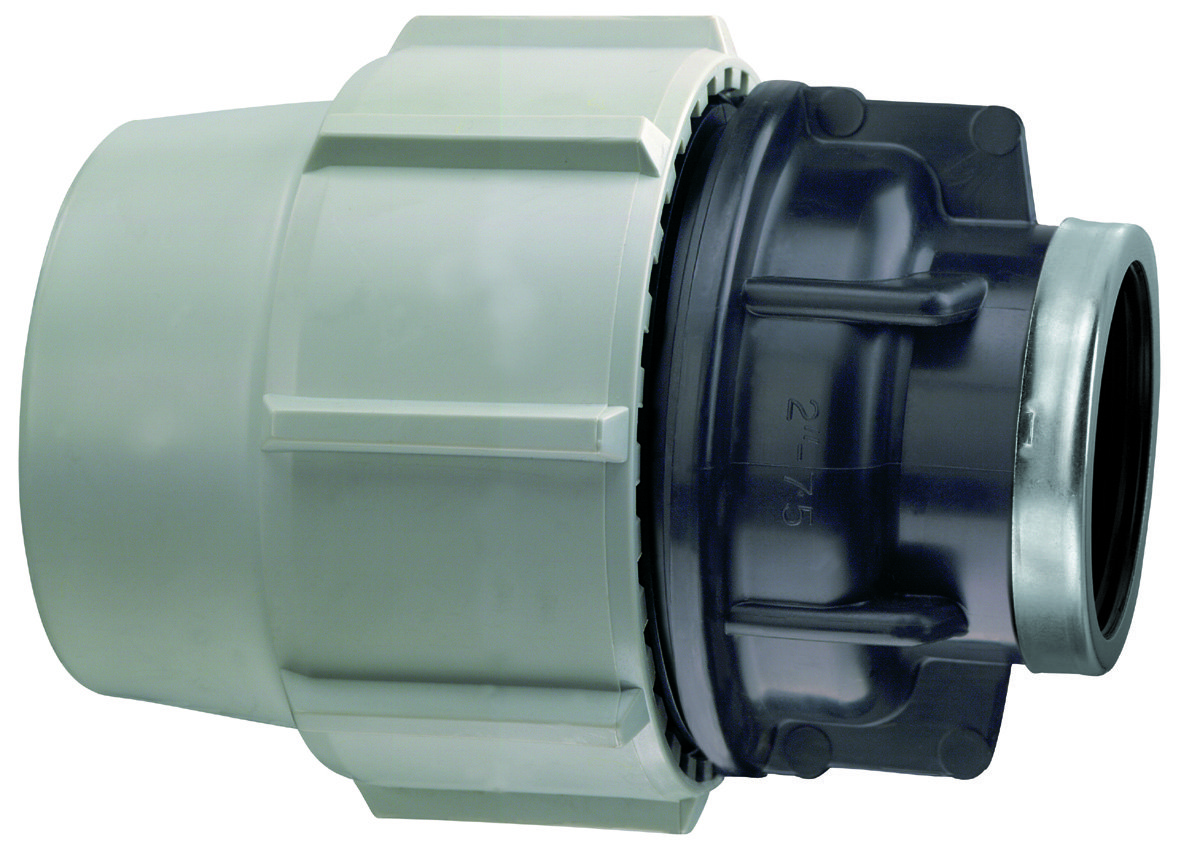

Anschlussverschraubung mit Innengewinde
1/2" - 2 1/2" PN 16, 3" PN 10, 4" PN 6

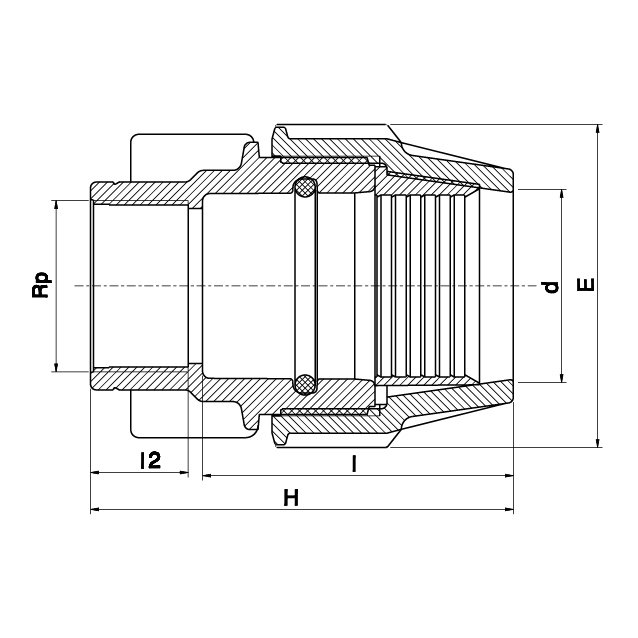

| Artikelnummer | d x Rp | E | H | I | I2 | Stk/Pck | Stk/Ktn | Gewicht g |
|---|---|---|---|---|---|---|---|---|
| 7030-020.02 | 20 x 1/2" | 48 | 82 | 60 | 19 | 10 | 350 | 60 |
| 7030-020.03 | 20 x 3/4" | 48 | 82 | 60 | 19 | 10 | 350 | 58 |
| 7030-025.03 | 25 x 3/4" | 54 | 88 | 63 | 21 | 10 | 250 | 83 |
| 7030-025.04 | 25 x 1" | 54 | 88 | 63 | 21 | 10 | 250 | 87 |
| 7030-032.03 | 32 x 3/4" | 64 | 94 | 73 | 19 | 5 | 150 | 107 |
| 7030-032.04 | 32 x 1" | 64 | 94 | 69 | 21 | 5 | 150 | 115 |
| 7030-032.05 | 32 x 1.1/4" * | 64 | 96 | 67 | 25 | 5 | 140 | 140 |
| 7030-040.04 | 40 x 1" * | 82 | 112 | 84 | 21 | - | 110 | 178 |
| 7030-040.05 | 40 x 1.1/4" * | 82 | 114 | 84 | 25 | - | 110 | 202 |
| 7030-050.06 | 50 x 1.1/2" * | 96 | 123 | 93 | 25 | - | 70 | 287 |
| 7030-050.08 | 50 x 2" * | 96 | 128 | 93 | 30 | - | 70 | 290 |
| 7030-063.05 | 63 x 1.1/4" * | 113 | 139 | 110 | 25 | - | 48 | 417 |
| 7030-063.08 | 63 x 2" * | 113 | 148 | 110 | 30 | - | 48 | 431 |
| 7030-075.10 | 75 x 2.1/2" * | 132 | 175 | 137 | 33 | - | 27 | 730 |
| 7030-090.12 | 90 x 3" * | 152 | 222 | 182 | 40 | - | 14 | 1.196 |
| 7030-110.16 | 110 x 4" * | 181 | 273 | 215 | 52 | - | 8 | 2.132 |
* mit INOX-Verstärkungsring
